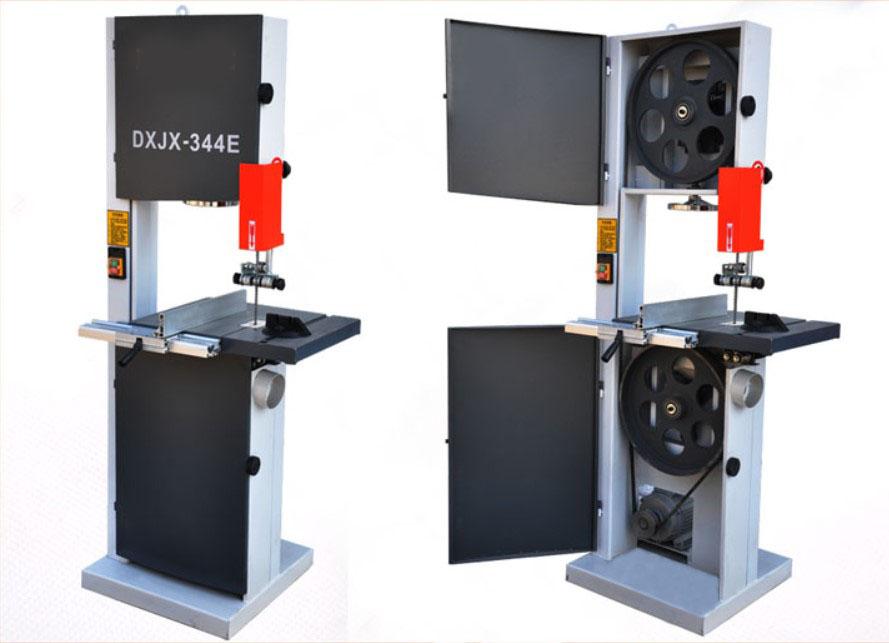

Heavy-duty woodworking band saw machine can be used to finely cut wood, metal, foam, paper tube, PVC tube, acrylic board, aluminum alloy, stainless steel tube, resin, metal parts, foam brick and other materials, 90 degree straight cut, diagonal cut , 45 degree cutting, arc cutting, modeling cutting, etc., with a wide range of uses, Convenient and practical, it is one of the necessary machines for furniture factories.
1. The cast iron saw wheel has undergone a precise dynamic balance test

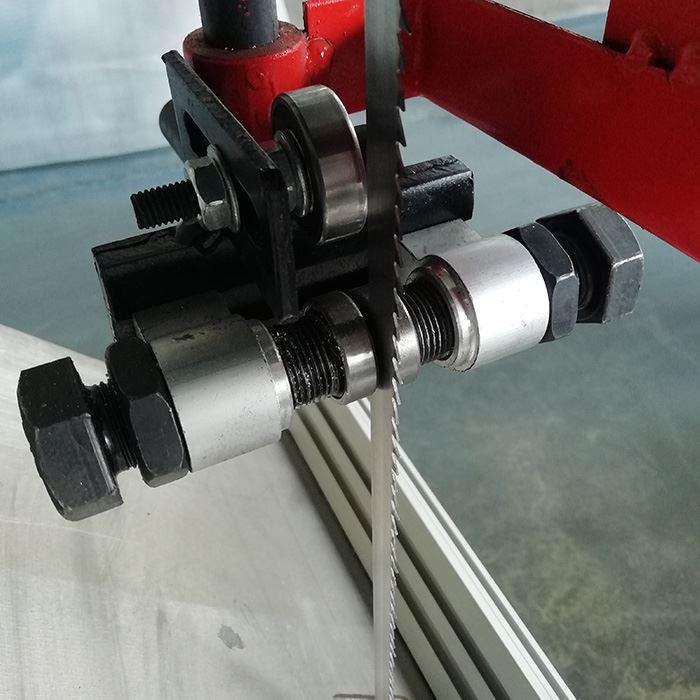

2. High precision, double saw card, high processing precision,
3. The table is inclined, and the gear transmission is more stable
4. Precision ruler with scale, precision adjustment
5. The saw blade is quickly tightened and adjusted easily
|
Model
|
MJ344E
|
MJ345E
|
MJ346E
|
|
Max. Sawing thickness
|
300mm
|
300mm
|
300mm
|
|
Saw wheel diameter
|
400mm
|
500mm
|
600mm
|
|
Length of blade
|
3531mm
|
3962mm
|
4470mm
|
|
Blade width
|
6`30mm
|
6~30mm
|
10~35mm
|
|
Totable angle of table
|
0~45°
|
0~45°
|
0~30°
|
|
Spindle speed
|
1000RPM
|
1000RPM
|
900RPM
|
|
Motor power
|
2.2kw
|
2.2kw
|
3kw
|
|
Throat depth
|
380mm
|
480mm
|
580mm
|
|
Dimension
|
820*620*1700mm
|
920*650*1900mm
|
1020*660*2050mm
|
|
Weight
|
185kg
|
220kg
|
300kg
|
