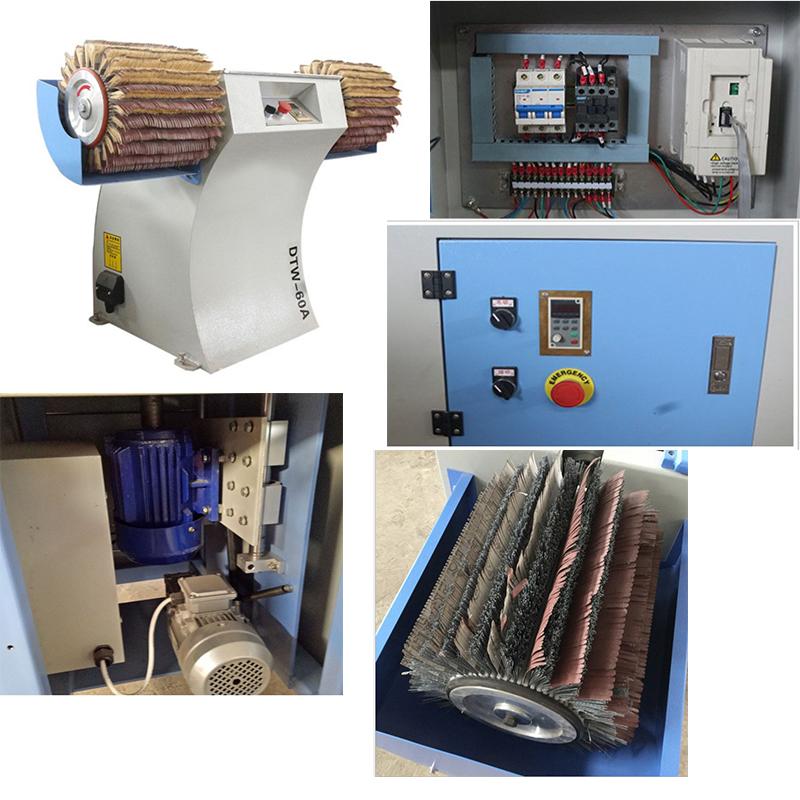

Horizontal double shaft manual polishing machine is mainly used for grinding and primer sanding of wood products. It is suitable for all kinds of solid wood, composite board MDF, veneer and other materials. It is mainly used for grinding and polishing of narrow workpieces and workpiece sides.
It can also be used for polishing and polishing various irregular and flat wood products such as hollow board, carved board door line, door flower, Roman column, photo frame and toilet seat.
Feature
1. The model has a long length of 300mm, which is easy to operate and can work simultaneously for two people to improve work efficiency.
2. The body is made of 6mm steel plate, all of which are laser-cut and cut, with precise dimensions and beautiful appearance.
3. The whole machine is painted with high temperature, the collision of the fuselage is not easy to drop paint, and the rust prevention is more durable.
4. Pure copper motor, safe and reliable
5. With inverter device, the speed can be adjusted freely, and the inverter is guaranteed for one year.
6. The lifting device adopts round rod bearing and the fuselage is more stable.
|
Product name
|
Horizontal double head manual polishing machine
|
|
Model
|
DTW-60B
|
DTW-60A
|
|
Motor
|
1.1kw,4
|
1.5kw,4
|
|
Voltage
|
220V/380V
|
|
Rolling speed
|
Frequency adjust speed
|
|
Maximum length of the roller
|
300mm
|
300mm
|
|
Hair roller diameter
|
200mm
|
300mm
|
|
Mahine dimension
|
1370*500*800mm
|
1220*720*900mm
|
|
Weight
|
90kg
|
150kg
|
